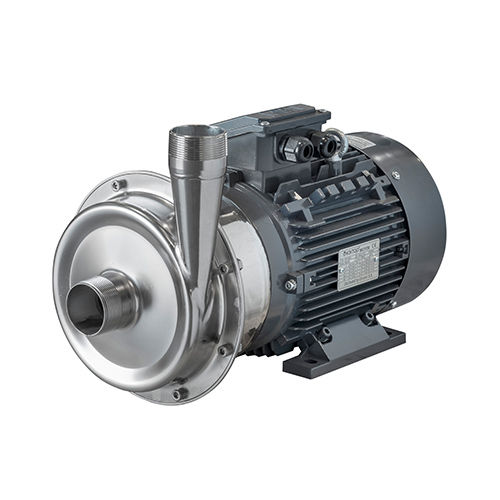

Beverage pump ESTAMPINOX EFI series

electricself-primingcentrifugal

Estampinox EFI is a range of close-coupled centrifugal pumps. It is made of a cold-formed stainless steel casing, open impeller manufactured with stainless steel cold-formed plate or investment casting (according to model), mechanical seal, pump cover, lantern and shaft. Estampinox EFI centrifugal pump is provided with an internal single mechanical seal. Triphasic induction motor with B34 flange (B35 for motor frame 132), in compliance with the IEC standards, 2 poles = 3000/3600 rpm, efficiency class according to EC regulation, IP 55 protection and F-class insulation. 3 phases, 50 Hz, 230 V Δ / 400 V Υ, ≤ 4 kW 3 phases, 50 Hz, 400 V Δ / 690 V Υ, ≥ 5,5 kW Parts in contact with the product Stainless steel AISI 316L (1.4404) Other steel parts Stainless steel AISI 304 (1.4301) Gaskets in contact with the product EPDM Mechanical seal: Rotary part Ceramic (Cer) Stationary part Carbon (C) Gaskets EPDM Surface finish: Matt Connections: Threaded connection (ISO 7) AISI 304 stainless steel motor shroud. Other materials for mechanical seals and gaskets. Different types of connections. Motor with other voltages, frequencies, mechanial protections and efficiencies. Trolley and/or control panel.
