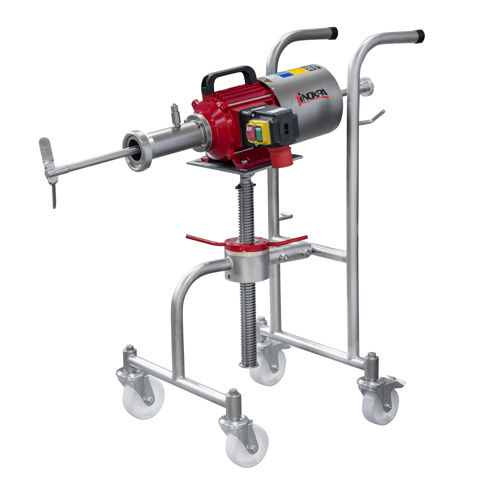

Dynamic agitator CPG

batchsolidstainless steel

Side-entry agitator for the winemaking industry. Maintenance of solids in suspension. Coupage (wine blending). Gasification (SO2 or CO2). Temperature homogenisation. The design of the agitator is based on the shaft that slides through a full bore valve into the tank and a propeller that opens automatically when started. The agitator shaft is provided with a C/St.St./EPDM mechanical seal. The CPG wine agitators are designed for installation in tanks full of product by means of a full bore valve without losing product and without special tools. The standard mixing element is folding propeller type 12. Electric motor 3 ph, 400 V. , 50 Hz, IP 55, 1450 rpm. Manual deaeration valve. Standard connections DIN 11851. Parts in contact with the product: AISI 316L Gaskets: EPDM Mechanical seal: C/St.St./EPDM Surface finish: Matt Stainless steel trolley. Valve for product injection, drainage or sampling. Mechanical seal TuC/TuC/FPM. Female connection to the motor. Control panel and protection in compliance with the EC standards. Special shaft length. Different types of connections.
