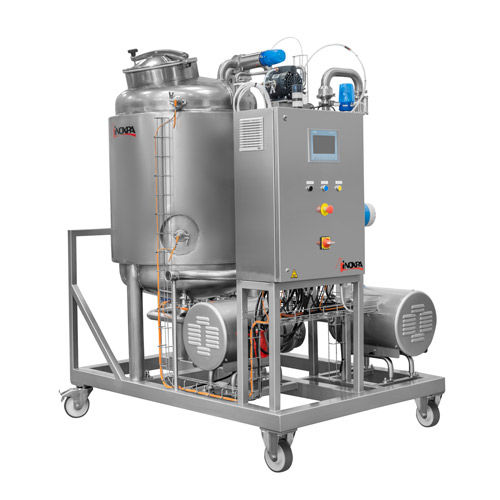

CIP unit for the food industry

stainless steel

Hygiene is such a vital factor during food processing that it should be considered as one of the production process steps. Incorrect cleaning in the food industry can lead to the loss of an entire day’s production and directly affect the end product’s quality. This is why, when thinking about small facilities that require a certain level of automation, INOXPA designed an automatic CIP system to help to clean plants, eliminate impurities, and reduce bacteria levels. The system includes the following elements: 1 insulated 300L tank for preparing the cleaning solution. Electrical resistance heating with temperature regulation fitted in the tank. Constant level in the tank using a pressure switch. Hyginox SE-28 pump. Collectors with automatic butterfly valves with pneumatic actuator and C-TOP+ control unit. Base frame with wheels. Stainless steel electric panel. Comes with a 5.7” SIEMENS touchscreen and PLC using the SIEMENS S7-1200 CPU with programmes. Tested and verified in our installations. The pneumatic valves prevent errors during CIP operational phases such as rinsing with water, chemical product and its subsequent recovery, final rinsing. Combining pneumatic valves with the PLC ensures control over each operational phase duration, an important parameter when ensuring a correct cleaning cycle. Automatic temperature control.
