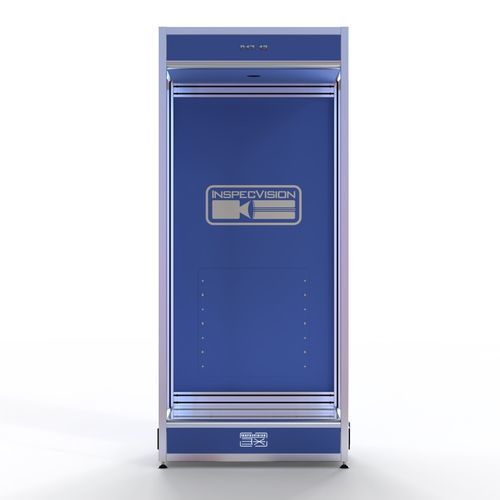

Optical inspection machine Planar P17.12

3Dsurfaceshape

• Inspect Parts Quickly and Automatically • Ultra Fast Reverse Engineering • SPC Integration • Largest Range of Models Available • 3D Scanning Add On Product Specs Accuracy: • Shape: 12/25μm* • Surfscan: 0.1mm Component Size (length x depth x height) : 500mm x 333mm x 120mm Specification • Max component length : 500mm • Max component width : 333mm • Max component thickness : 120mm • Max component weight : 100kg – UDL (Uniformly Distributed Load) • Measuring accuracy, length & width** : +/- 12/25 μm* • Measuring accuracy, height** (Optional) : +/- 100 μm • Point Spacing : 0.09mm • Measuring speed** : 3GHz • Hard disk : >125GB • Screen : 20 inch flat screen or better • Peripheral equipment : Keyboard and optical mouse • Operating software : Windows 10 - 64 Bit • Proprietary InspecVision software : Inspection, SPC, Reporting, Reverse engineering • Data cable : USB 2 or USB3 • Computer cabinet (Optional) : Industrial dust-proof enclosure • Light table construction : Extruded aluminium frame with acrylic cladding • Light table measuring surface : Laminate glass, toughened with integral diffusion layer • Light source : High efficiency LED lighting • Mast construction : Extruded aluminium
