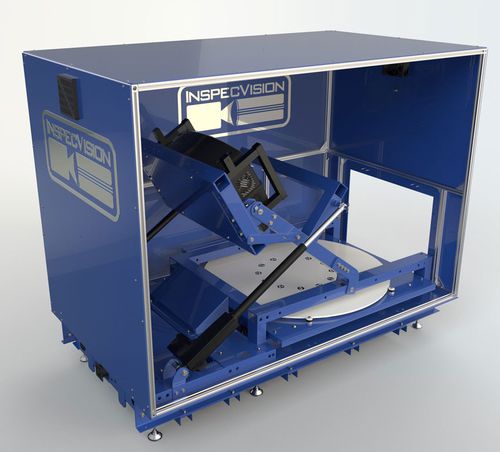

Optical scanning system Opti-Scan OS350.10

3Dinspectionpoint cloud

• Measures surfaces and edges in 3D • Single click automated inspection • White light scanning technology • Certified accuracy • 20MP camera as standard • Designed for factory floor conditions Accuracy: • Repeatability: 10 μm • Volumetric: 15 μm Resolution • Field of View: 350mm • Camera: >20MP • Projector: >2MP Specification • Max Single scan area 1 & 2 : 350mm (X) x 215mm (Y) • Max Single scan depth 1,2 & 3 : 215mm (Z) • Volumetric accuracy : 15 microns • Repeatability : 10 microns • Point Spacing : Better than 75 microns • Scanning speed : > 250,000 points per second • Scanning time : < 10 seconds • Processing time : < 5 seconds • Peripheral equipment : Table lighting controller, Standard Computer Interface • Required Operating System : Windows 10 64bit • Software included : 3D scanning, automated repositioning, texture map acquisition, 3D color rendering, creation of cross-sections, creation of 3D edges, reverse engineering of 3D edges to DXF/DWG, comparison of 3D edges to DXF/DWG, reverse projection of colored deviation reports onto part, creation of 3D point clouds in PLY, STL, VRML, ASCII formats, creation of texture mapped point clouds, calibration software. • Free 3D Inspection Software : Fully compatible with off the shelf free 3D inspection software. Functionality includes comparison to 3D solid models, dimensioning, GD&T, cross-sections, full surface deviation inspection, merging of scans, customizable reports, automatic alignment of scan to CAD, point cloud meshing, processing and filtering, extraction of nominal data from CAD model, comparison of 2 scans.
