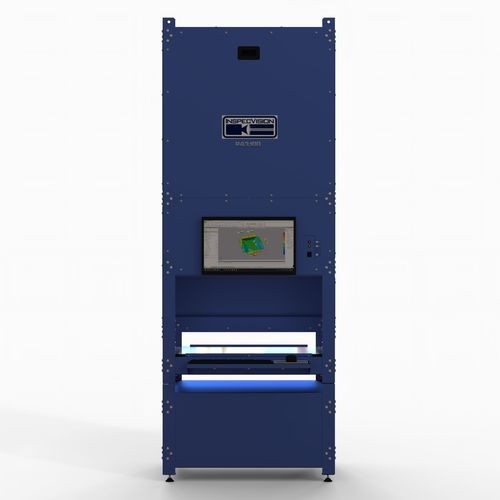

Optical inspection machine Planar P43.100

visual3Dsurface

• Inspect Parts Quickly and Automatically • Ultra Fast Reverse Engineering • SPC Integration • Largest Range of Models Available • 3D Scanning Add On Accuracy: • Shape: 100/200μm* • Surfscan: 0.3mm Component Size • (length x depth x height) • 810mm x 520mm x 250mm Specification • Max component length : 810mm • Max component width : 520mm • Max component thickness : 50mm • Max component weight : 25kg – UDL (Uniformly Distributed Load) • Measuring accuracy, length & width** : +/- 100/200µm • Measuring accuracy, height** (optional) : +/- 300 µm • Point Spacing : 0.26mm • Measuring speed** : <0.25sec • Camera : Industrialized ultra high resolution • Computer processor : Intel Dual Core • Processor speed : 2GHz • Hard disk : <256Gb • Screen : 24 inch flatscreen • Peripheral equipment : Keyboard and optical mouse • Operating software : Windows 10- 64 Bit • Proprietary InspecVision software : 2D & 3D Inspection, SPC, Reporting, Reverse engineering • Data cable : USB2 or USB3 • KVM : Keyboard, Video Display & Mouse stand (PC integrated into light table assembly) • Light table construction : Frame with removable sheet metal cladding • Light source : High efficiency LEDs • Power supply : 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request • Power consumption : 5 Amp maximum at 230 Volt, 10 Amp max at 110 Volt • Control panel : Control switches for computer and projector power and USB port • EC directives : Compliant with Machinery, Low voltage and EMC Directives • Paint colour (powder paint) : RAL5013 (cobalt blue) • Ambient operating conditions : 10-30 degree C
