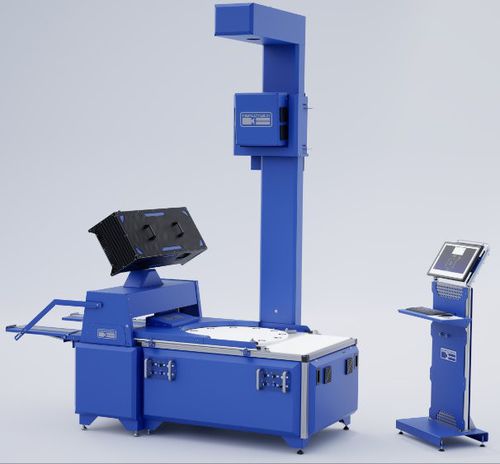

Optical inspection machine Planar P110.25

3Dsurfaceshape

• Inspect Parts Quickly and Automatically • Ultra Fast Reverse Engineering • SPC Integration • Largest Range of Models Available • 3D Scanning Add On Product Specs Accuracy: • Shape: 25/50μm • Surfscan: 0.15mm Component Size (length x depth x height) 1276mm x 851mm x 350mm Specification • Max component length : 1276mm • Max component width : 851mm • Max component thickness : 350mm • Max component weight : 200kg – UDL (Uniformly Distributed Load) • Measuring accuracy, length & width** : +/- 25/50 μm* • Measuring accuracy, height** (optional) : +/- 150 μm* • Point Spacing : 0.23mm • Measuring speed** : <0.25sec • Camera : Industrialised ultra high resolution professionally mounted in sealed enclosure • Computer processor : Intel Quad Core • Processor speed : <3GHz • Hard disk : <125Gb • Screen : 20 inch flat screen or better • Peripheral equipment : Keyboard and optical mouse • Operating software : Windows 10 - 64 Bit • Proprietary InspecVision software : Inspection, SPC, Reporting, Reverse engineering • Data cable : USB 2 or USB3 • KVM : Keyboard, Video Display & Mouse stand (PC integrated into light table assembly) • Light table construction : Frame with removable sheet metal cladding • Light table measuring surface : Laminate glass, toughened with integral diffusion layer • Light source : High efficiency fluorescent tubes or LED lighting with high frequency digital control gear • Mast construction : Heavy folded sheet metal construction • Power supply : 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request • Power consumption : 8 Amp maximum at 230 Volt, 13 Amp max at 110 Volt • Protective devices : Circuit breakers, mounted at rear of light table
