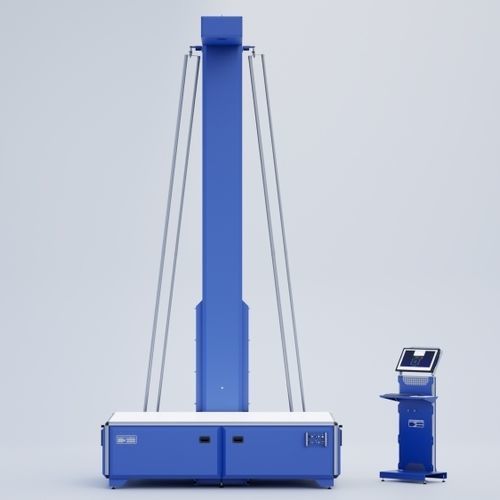

Optical inspection machine Planar P370.50

3Dsurfaceshape

• Inspect Parts Quickly and Automatically • Ultra Fast Reverse Engineering • SPC Integration • Largest Range of Models Available • 3D Scanning Add On Product Specs Accuracy: • Shape: 50/100μm* • Surfscan: 0.3mm Component Size (length x depth x height) 2355mm x 1570mm x 350mm Specification • Max component length : 2355mm • Max component width : 1570mm • Max component thickness : 350mm • Max component weight : 500kg UDL (Uniformly Distributed Load) • Measuring accuracy, length & width** : +/- 50/100 μm* • Measuring accuracy, height** (optional) : +/- 300 μm* • Point Spacing : 0.43mm • Measuring speed** : 3GHz • Hard disk : >125Gb • Screen : 20 inch flat screen or better • Peripheral equipment : Keyboard and optical mouse • Operating software : Windows 10 - 64 Bit • Proprietary InspecVision software : Inspection, SPC, Reporting, Reverse engineering • Data cable : USB 2 or USB3 • KVM : Keyboard, Video Display & Mouse stand (PC integrated into light table assembly) • Light table construction : Frame with removable sheet metal cladding • Light table measuring surface : Laminate glass, toughened with integral diffusion layer • Light source : High efficiency LEDs • Mast construction : Heavy folded sheet metal construction • Power supply : 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request • Power consumption : 20 Amp maximum at 230 Volt, 30 Amp max at 110 Volt • Protective devices : Circuit breakers, mounted at rear of light table
