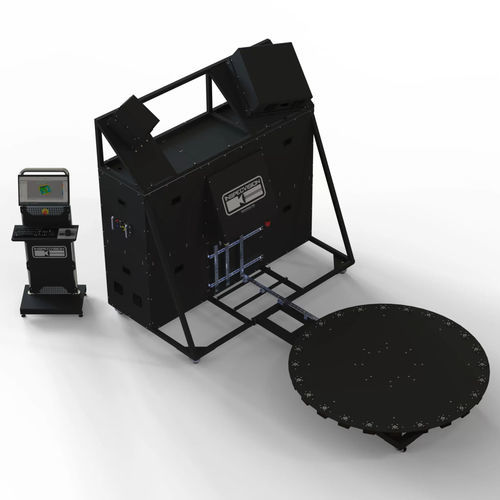

Optical scanning system Opti-Scan OS2000.35

3Dinspectionmobile

• Measures surfaces and edges in 3D • Single click automated inspection • White light scanning technology • Certified accuracy • 65MP camera as standard • Designed for factory floor conditions • Retrofit and use with Planar 2D Product Specs Accuracy: • Repeatability: 35 μm • Volumetric: 75 μm Resolution • Field of View: 2000mm • Camera: >65MP • Projector: >8.2MP Specification • Max Single scan area 1 & 2 : 2000mm (X) x 1125mm (Y) • Max Single scan depth* 1,2 & 3 : 1125mm (Z) • Volumetric accuracy** : 75 microns • Repeatability** : 35 microns • Point Spacing : Better than 250 microns • Scanning speed*** : > 5000,000 points per second • Scanning time*** : < 15 seconds • Processing time**** : < 30 seconds • Peripheral equipment : USB lighting controller, Standard Computer Interface • Required Operating System : Windows 11 64bit • Software included : 3D scanning, automated repositioning, texture map acquisition, 3D color rendering, creation of cross-sections, creation of 3D edges, reverse engineering of 3D edges to DXF/DWG, comparison of 3D edges to DXF/DWG, reverse projection of colored deviation reports onto part, creation of 3D point clouds in PLY, STL, VRML, ASCII formats, creation of texture mapped point clouds, calibration software. • Free 3D Inspection Software : Fully compatible with off the shelf free 3D inspection software. Functionality includes comparison to 3D solid models, dimensioning, GD&T, cross-sections, full surface deviation inspection, merging of scans, customizable reports, automatic alignment of scan to CAD, point cloud meshing, processing and filtering, extraction of nominal data from CAD model, comparison of 2 scans.
