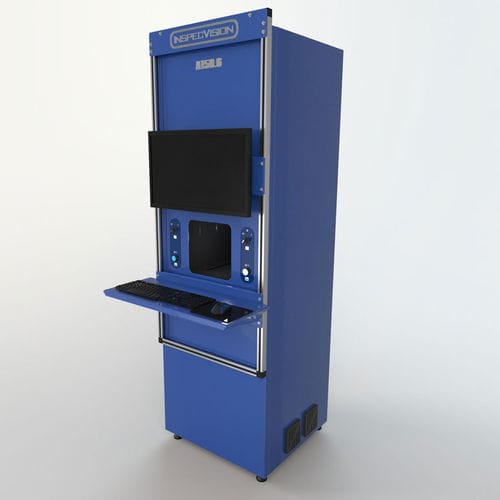

Gauging system Accuity A160.6

• Telecentric Gauging System • Automated 2D & 3D Inspection • Certified Accuracy from 6 microns • Scan Parts up to 160mm wide • 4 second Setup and Inspection Time Product Specs Accuracy: • 2D: 6μm • 3D: 10μm • Component Size (diameter) > 160mm Specification • Max Single 2D scan area : >160mm diameter • Max Single scan depth : 60mm (Z) • Camera : >25 megapixels • Lens : Telecentric • 2D Single Point Repeatability : 1.5 microns • 2D Accuracy : 6 microns • 3D Single Point Repeatability : 1.8 microns • 3D Accuracy : 10 microns • 2D Scanning time : 0.1 seconds • 3D Scanning time : 10 seconds • Point Spacing 2D & 3D : 0.036mm • Peripheral equipment : Table lighting controller, Standard Computer Interface • Required Operating System : Windows 10 64bit • Software included : 3D scanning, automated repositioning, texture map acquisition, 3D color rendering, creation of crosssections, creation of 3D edges, reverse engineering of 3D edges to DXF/DWG, comparison of 3D edges to DXF/DWG, reverse projection of colored deviation reports onto part, creation of 3D point clouds in PLY, STL, VRML, ASCII formats, creation of texture mapped point clouds, calibration software, 2D inspection software using silhouette and light from above, SPC output, automatic alignment, dimension importing, tolerance importing, tolerance tables, 3D repositioning, 2D repositioning, 2D reverse engineering.
