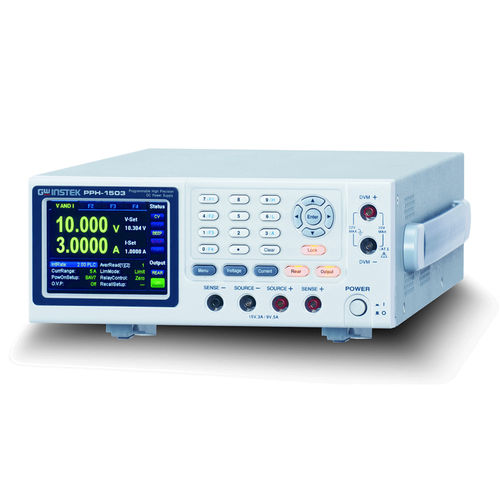

DC/DC power supply PPH-1503single-outputprogrammable
Add to favorites
Compare this product
Characteristics
- Type
- DC/DC
- Output
- single-output
- Other characteristics
- programmable
- Input voltage
20 V
- Output voltage
15 V
- Current
3 A, 5 A
Description
Dual Range Output (0~15V/0~3A) or (0~9V/0~5A)
3.5 Inch TFT LCD Display
Constant Voltage and Constant Current Operation
Built-in DVM Measurement Function
High Measurement REsolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for
5mA Range)
EXternal Relay Control Output On/Off
Sink Current Capability (Maximum:2A)
Digital Panel Control
Selectable Output and Input (DVM) Ports From Front or Rear Panel
Key Lock Function
5 Sets of Preset Memory Including Power Output ON/OFF States
High Speed Transient Recovery Time(<40us within 100mV ; <80us within
20mV)
OVP/OCP/OTP Protection to Prevent DUT Damage
Standard Multiple Interfaces: USB / LAN /GPIB
Labview Driver and PC Remote Control Software
