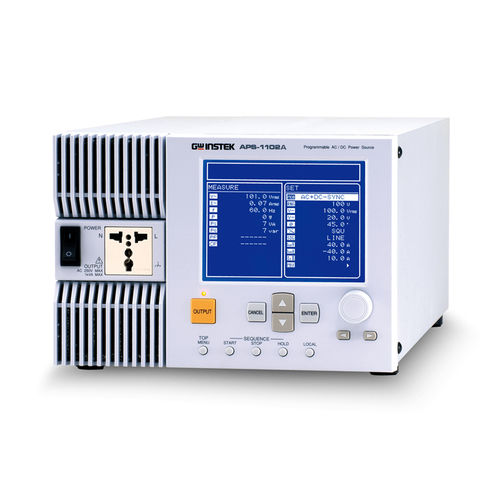

AC/AC power supply APS-1102A
Add to favorites
Compare this product
Characteristics
- Type
- AC/AC
- Input voltage
Max.: 250 V
Min.: 100 V
- Output voltage
100 V, 200 V
- Current
5 A, 10 A
- Power
750 W, 1,000 W
Description
5.7" Large LCD Display
Output Capacity: 1kVA(for AC 200V Input)
Output Modes: AC and AC+DC Combined with any of four signal sources
Signal Source: Internal(INT),External(EXT),Internal+External(ADD) and Synchronization(SYNC)
Arbitrary Waveform Power Output
Power Amplifier of External Signal
Measurement Functions: Voltage, Current, Power ,Frequency, Power Factor,CF,and Harmonic Current
Capacitor Input Load Supported
Sequence Function Allows Programming of Output Patterns
Limiter Function ( Upper / Lower / Limit Function)
30 sets of Save / Recall Memory
Output On / Off Switch
USB(USBTMC)and RS-232 Standard for Remote Control
PC Software (Including Data Logging)
