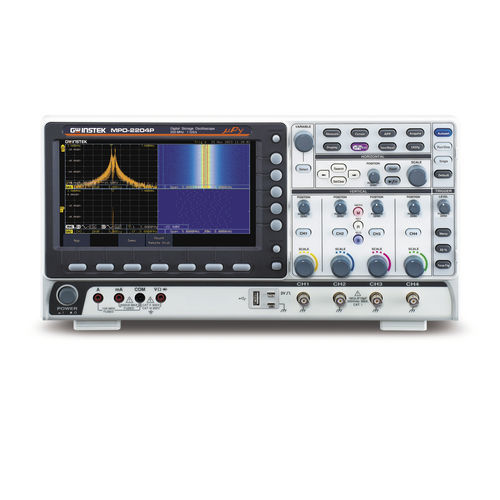

Digital oscilloscope MPO-2000 Series

bench-top2-channel4-channel

GW Instek launches the MPO-2000 series, which is named after the abbreviation of Multi-function Programmable Oscilloscope. In addition to being an oscilloscope, it also includes a spectrum analyzer, an arbitrary waveform generator, a digital multimeter and a DC power supply. In addition to the five-in-one multi-functional architecture, we innovatively introduced the Python script function into the MPO-2000, so that users can conduct program control of a small automated test system by setting up a single unit test or multi-unit test without a PC, hence, the name MPO. The MPO-2000 series provides Basic and Professional versions (model suffixes are represented by B and P).In terms of bandwidth, the Basic version is 100MHz and the Professional version is 200MHz and the main difference is that the Professional version provides larger program memory and more system resources to achieve the ability to process longer waveform data. • MPO-2000P:200MHz; 4CH/2CH • MPO-2000B:100MHz; 4CH/2CH • Allow to use Python scripts to control for automation purpose • Dual Channel Spectrum analyzer with Spectrogram • I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function • MPO-2000P:CAN FD, USB 2.0(full speed), FlexRay, USB PD, I2S digital decoding • MPO-2000B: CAN FD, USB 2.0 (full speed) digital decoding • Data log function is able to track signal changes up to 1000 hours • Network storage function • Equips with a spectrum analyzer; a dual channel 25MHz AWG; DMM and power supply. • Power Supply: Dual channel output, 1V to 20V continuously adjustable (0.1V step)
