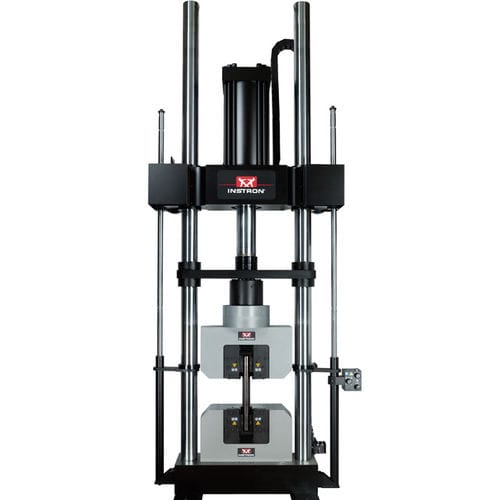

Designed for high-capacity tension, compression, bend/flex, and shear testing, the KPX Models feature an ultra-large single test space and adjustable crosshead options. Understanding the critical importance of operator safety, these frames incorporate high-quality materials, components, and craftsmanship and are ideal for testing metals, wire, concrete, fasteners, wood, and composites.
Features
• Adjustable crosshead options allow the test space to be adapted to a wide range of test specimens, applications, and accessories
• Linear guidance system maintains precise alignment of load string over the entire stroke of the actuator
• Co-axially mounted encoder accurately measures actuator travel at the center of the load string
• Convenient working height and ergonomic controls improve operator productivity and comfort
• Long stroke, high-speed actuator accommodates both tension and compression testing applications
• Ergonomic handset with a fine position adjustment wheel, two programmable softkeys, start, stop and return functions, and variable speed jog
• Powerful, yet user-friendly materials testing software provides repeatable and reproducible results for simple to sophisticated testing requirements
Models
• 1500KPX: 1,500 kN (337,500 lbf)
Typical Applications
• Metals - Bar, Plate, Pipe & Tube, Rebar, Structural
• Wire - Rod, Strand
• Concrete
• Fasteners
• Wood
• Composites
