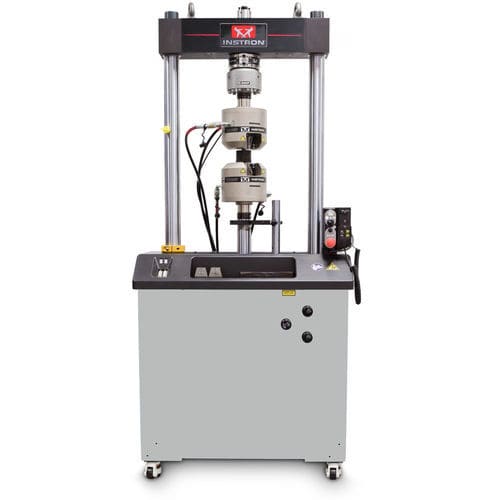

Fatigue testing machine 8801

PC-controllablematerialindustrial

The Instron® 8801 is a compact servohydraulic fatigue testing system that meets the challenging demands of various static and dynamic testing requirements. 8801 systems provide complete testing solutions to satisfy the needs of advanced materials and component testing, and are ideally suited for fatigue testing and fracture mechanics. The compact design of the 8801 frame makes it ideal for installation within any laboratory environment, generally without the need for strengthened floors or raised ceiling heights. FEATURES • Double-acting servohydraulic actuator with force capacity up to ±100 kN (±22 kip) • High-stiffness, precision-aligned load frame with twin columns and actuator in lower base • 150 mm (6 in) of usable stroke • Designed for both dynamic and static testing on a variety of materials and components • Choice of hydraulic configuration and dynamic performance to suit application • Extra-height frame option for testing longer load strings • Adjustable upper crosshead with hydraulic lifts and locks fitted as standard for easy adjustment of daylight • Patented1 Dynacell™ advanced load cell technology for faster testing and reduction of inertial errors • Compact servohydraulic fatigue test system – frame requires less than 0.5 m² (5.4 ft²) of floor space • Hydrostatic bearing actuators for higher side-load resistance or material critical applications, such as low cycle fatigue (LCF) • Designed to be used with the 3520 Series ofHydraulic Power Units • Compatible with a large range of grips, fixtures, chambers, video extensometers, protective shields, and other accessories
