Thermostatic bath for medical applications 3130-100

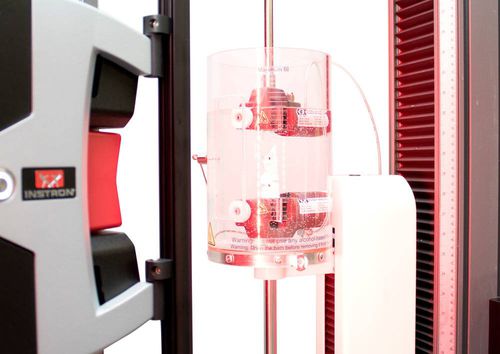

BioPuls Temperature Controlled Bath Catalog no. 3130-100 The temperature-controlled BioBath allows for accurate simulation of the environmental conditions required for biomedical testing. Distilled water or saline solution is brought to temperature under 30 minutes and the temperature is maintained within onedegree through closed-loop temperature control. The bath has a pneumatic lifting and lowering mechanism that allows for ease of use, increases productivity, and minimizes the risk of spilling fluid on the surrounding test equipment. Most importantly, the BioBath was specifically designed for compatibility with our newest video extensometers, allowing for unparalleled accuracy in strain measurement. Standard features include: Pneumatically powered lifting mechanism smoothly raises and lowers the bath, preventing spillage and ensuring ease-of-use Compatible with standard height EM frames (excluding 3342, 5942, and 5542) Allows accurate closed-loop control of bath temperature at +37°C ±1°C Upper pull-rod designed to minimize buoyancy changes during testing Compatible with the Standard and Advanced Video Extensometers (SVE2 and AVE2) for axial strain measurements Strain measurement verification possible for axial strain measurements Maximum travel using video extensometer: 100 mm with a 25 mm grip separation and 10 mm gauge length marking Maximum travel within bath: 80 mm with pneumatic submersible grips and 25mm grip seperation Easy drainage through one-way tubing Protective cover provided to shield machine from fluid spillage
