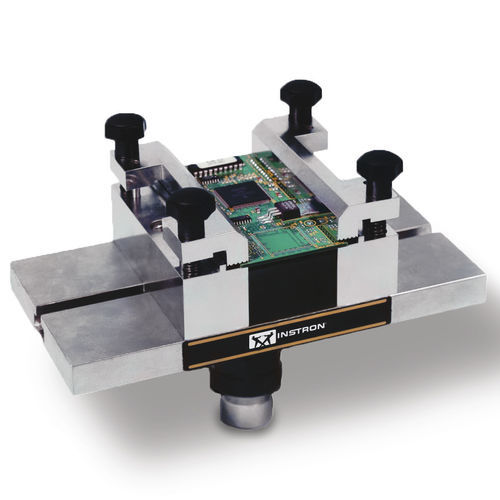

Linear positioning stage 2860-200

manual

The clamping stage may be mounted directly to the base of a testing machine in order to provide accurate adjustment and indexing of the specimen position during testing. In a typical test configuration the assembly under test would be mounted in the PCB clamping stage fitted to an X-Y translation stage or directly to the base of a test machine and a lead pull grip would be mounted below the load cell on the moving crosshead or actuator.
