Translation positioning stage 2860-101

rotarymanualmicrometric

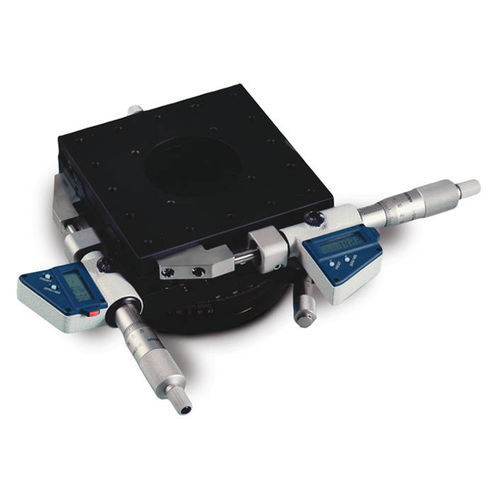

The Theta-X-Y manual translation stage provides the facility to precisely position and align a test specimen below the actuator (two axes). Theta (angle) and X-Y axes are also adjustable via digital micrometers. The rotary axis can be adjusted via a micrometer and has a vernier scale readable to 5 ft. The X-Y axes micrometers have a resolution of 1 micron. The axes are arranged with the angle stage at the base, with the X-Y stage on top. This allows the test platform to be oriented with the X-Y axes referenced to the specimen. Typical applications include lead pull and component pull off tests on microelectronic devices and PCB’s.
