Hand marking punch W-67 series

hand marking punch
hand marking punch
hand marking punch
hand marking punch
hand marking punch
Add to favorites
Compare this product


Characteristics

Type
hand

Description

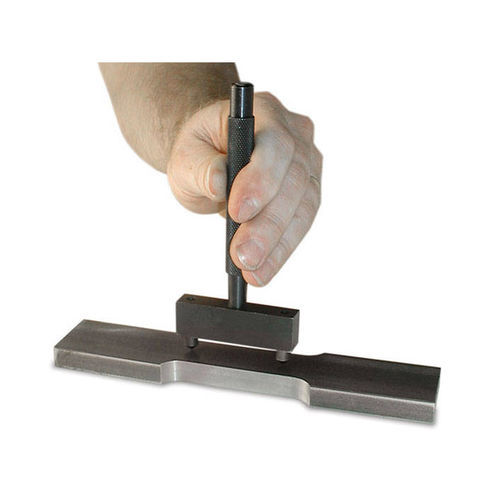

Gauge point punches are used to punch mark a metallic specimen with a set gauge length before testing so that specimen elongation can be measured either during or after the test. Manual punches are available for a range of different gauge lengths. PRINCIPLE OF OPERATION Manual gauge point punches require a strike with a hammer to punch mark the specimen. Standard punches consist of either a single set of punch points or a combination of two different sets of punch points. The punches are checked at the factory to provide punch marks at a predetermined, fixed gauge length. Special punches that provide multiple punch points spaced at fixed increments can also be purchased. APPLICATION RANGE Provide consistent fixed gauge length marking of metallic specimens

Catalogs

No catalogs are available for this product.

See all of Instron‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
