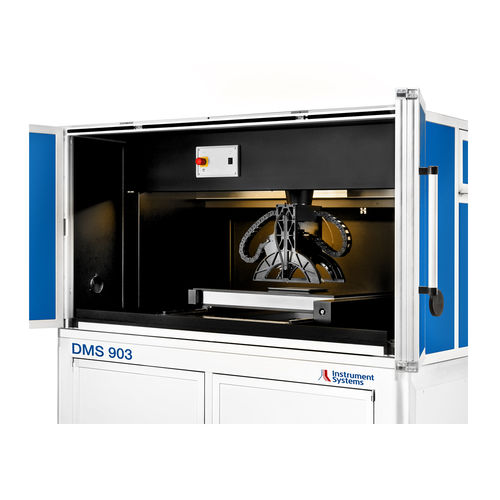

6-axis goniometer DMS 903

for large displays

Fully automatic 6-axis goniometer for large-format displays Maximum automation for quality control and lab The DMS 903 is ideal for the photometric and colorimetric analysis of large-format displays. The measuring system is based on a 6-axis goniometer for determining the viewing angle-dependent properties of large displays. It is used in quality control, as well as in research and development and permits the analysis of samples up to a diagonal of 1800 mm (approx. 72”) and a measurement surface diagonal of 1270 mm (approx. 50”). DMS 903 - Product details: - Characterization of emissive, transmissive, reflective and transflective displays - 6 motorized axes for viewing angle scan and surface scanning of samples, without rotation of the sample during measurement - Optional array spectrometer for precise radiometric and photometric measurements - Analysis of all photometric and colorimetric properties as a function of viewing angle, electrical control, time and temperature (optionally with temperature control chamber) - Optional specular illumination for evaluation of the reflectance characteristics (e.g. BRDF) and diffuse light source with adjustable diameter (1° to 15°) for the simulation of ambient lighting conditions - Motorized microscope aperture and integral alignment camera - Extensive accessories for testing in varying lighting conditions and temperatures
