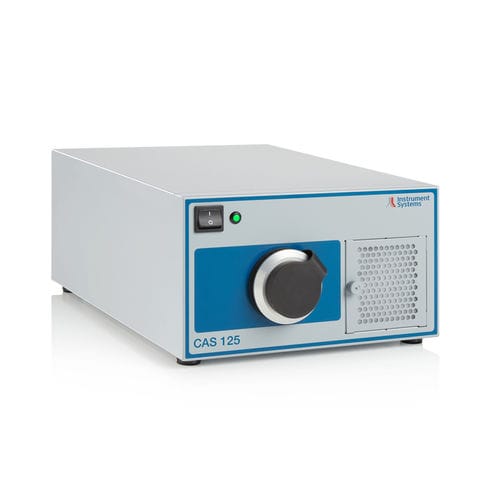

High-speed spectroradiometer CAS 125

laboratoryprocessfor production

Array spectroradiometer for precise and time-critical measurement tasks The CAS 125 from Instrument Systems is specially designed to meet the requirements of high-throughput 24/7 production applications. At the same time it fulfills a wide range of measurement tasks in laboratory and development. Optical testing in production lines can be time critical. Thanks to a CMOS sensor with sophisticated readout electronics, the new CAS 125 array spectroradiometer achieves very short measuring times down to 10 µs. The integrated stabilization of the sensor ensures dark current behaviour independent of ambient conditions. Low stray light and high optical throughput The design of the spectrograph block is based on our proven high-end spectroradiometer CAS 140D. Due to its optical performance with regards to stray light and optical throughput, the CAS 125 is also ideally suited for diverse measurements tasks in laboratory and research & development. A large selection of accessories and comprehensive software packages complement the CAS 125 to form a complete system for a wide range of spectroradiometric and photometric measurement tasks. • Spectral variants ranging from 200 nm – 1100 nm • CMOS sensor with sophisticated read-out electronics and integrated temperature stabilization • Ultrashort integration times down to 10 µs • Increased productivity with the Recipe mode • Spectrograph with high optical throughput and integrated density filter wheel • Plug & play accessory identification • Precise measurement of color correlated temperature (CCT) and color rendering index (CRI) • Comprehensive software package SpecWin Pro and Spectrometer SDK
