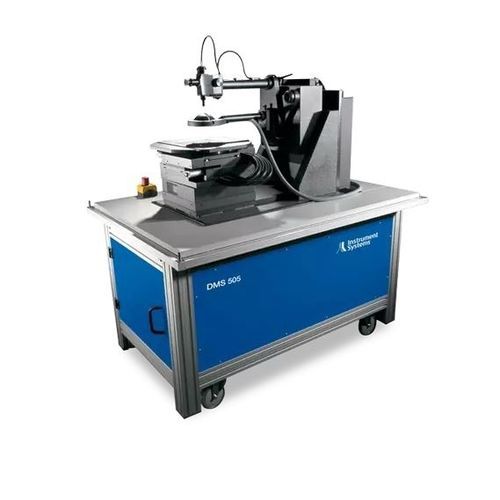

Motorized goniometer DMS 505

manual6-axisfor displays

The DMS 505 is based on a 6-axis goniometer, of which three axes are motorized. It permits viewing angle-dependent analysis of all electro-optical characteristics of displays, including luminance, contrast and color properties at different viewing angles and variable electrical control. With its extensive lighting accessories and temperature-controlled chambers, the DMS 505 is ideal for determining the characteristics of displays for mobile applications (smartphone, tablet PC). Characterization of emissive, transmissive, reflective and transflective displays 6-axis positioner with electrical control, photometer or spectroradiometer (optional), lighting, PC and software 3 motorized axes (inclination, azimuth and height adjustment of the measuring head), three manual axes Optional temperature control chamber Analysis of all photometric and colorimetric properties as a function of viewing angle, electrical control, temperature and time Extensive range of accessories for testing in varying lighting conditions and temperatures Combined light meters: microscope, photometer, spectrometer Temperature control chamber Light sources and lighting units Unit for sample control Scan surface extension Software packages: DMSControl (controller) and ViPer (preparation and evaluation of readings)
