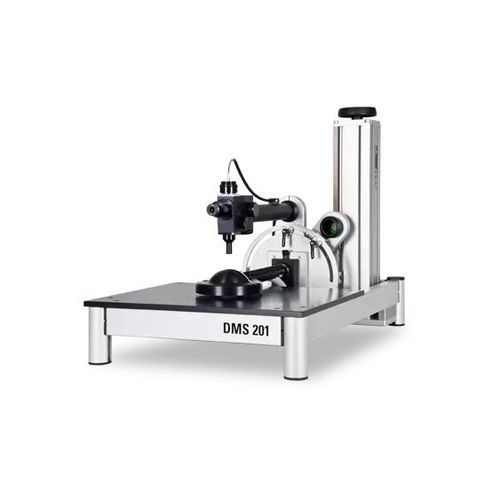

Automatic goniometer DMS 201

manualfor displays

Low-cost solution, simple and easily extended The DMS 201 is a low-cost goniometer with 2 or 3 manual axes for analysis of the electro-optical properties of displays. The measuring system incorporates a manual positioning device and is used for determining luminance, contrast and color behavior subject to variable electrical control and different viewing angles. Additionally, measurements with reflective and transmissive test illumination are possible. The DMS 201 is suitable for all applications in which automatic angle scans are not required. Characterization of emissive, transmissive, reflective and transflective displays Manual 2-axis goniometer (optional 3-axes) with PC and software Evaluation of all photometric and colorimetric properties as a function of electrical control, temperature, time and viewing direction Optionally available components: photometer or spectroradiometer, electric control, lighting unit, temperature control chamber Table version (standard) or stand version (optional) Combined light meters: microscope, photometer, spectrometer Temperature control chamber Light sources and lighting units Unit for sample control Scan surface extension Software package DMS Control (controller) and ViPer (preparation and evaluation of readings)
