Low cost design
+/- 1.6% FSD
PSI and BAR scales
Bottom or centre back connection
Ranges up to 1000 PSI
3/8″ BSPP connection
Black steel case

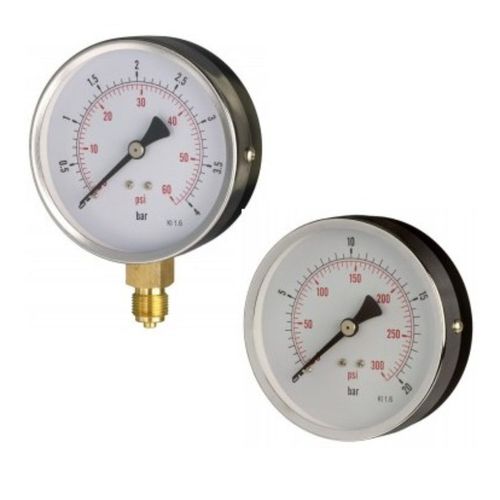

A low-cost 100mm pressure gauge with either bottom or centre back connection.
The brass process connection have am 17mm square block and a 3/8″ BSPP (parallel) male connection as standard.
Typical use would be on fluid liquids that have a temperature below 60C and gases (excluding oxygen or acetylene).
Applications such as pneumatics, air compressors, HVAC and water.
Nominal Size: 100mm
Accuracy: +/- 1.6%
Scale: PSI outer (black) BAR inner (red)
Operating Temperature: -20/+60C
Ingress Protection: IP40 as per EN 60529
Case: Enamelled steel black
Bezel: Chrome plated steel
Window: Acrylic clear
Pressure Element: CU all bourdon tube C type
Other process connections (back entry), scales and ranges available by request.
