- Bimetallic thermometer
- Instruments to Industry

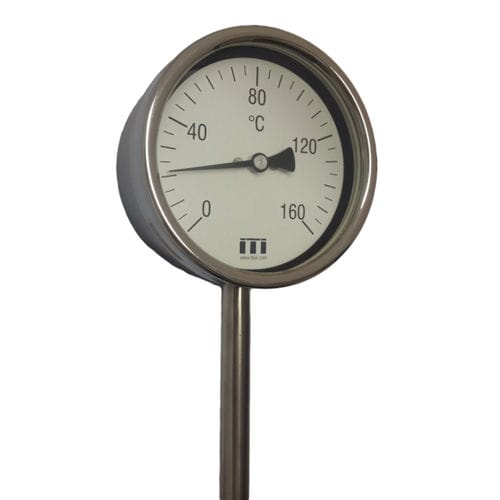

Bimetallic thermometer dialIP65rugged
Add to favorites
Compare this product
Characteristics
- Technology
- bimetallic
- Display
- dial
- Protection level
- IP65, rugged
- Applications
- industrial, for gas
- Other characteristics
- stainless steel, high-precision
- Temperature
Min.: -20 °C
(-4 °F)Max.: 600 °C
(1,112 °F)
Description
Class 1.0 (1% of FSD)
12.7mm (1/2″) Stem
Vertical Bottom Entry
100mm (4″) Dial Size
IP65 Case
Stainless Steel Construction
Gas Filled
The heavy-duty, high accuracy, Direct Mount Gas Filled Thermometer is an industrial dial thermometer manufactured by ITI in the UK.
This range of robust, direct mounting dial thermometers are manufactured to meet the requirements of industrial temperature measurement for fluids or gases.
Available with temperature measurement ranges from -20 to 600 °C with Class 1.0 accuracy (1% of FSD). The 100mm (4”) diameter dial is Nitrogen gas actuated with a case and bezel made from stainless steel.
It has a 12.7mm (1/2″) diameter plain rigid stem, available in lengths of 150 or 300mm as standard with vertical bottom entry, for use with compression fittings for easy process connection.
Custom versions are available.
