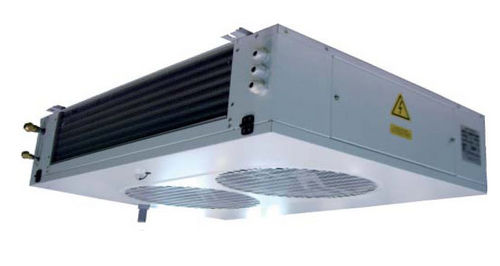

Dual-flow unit cooler 2.1 - 27.7 kW | JD series

Double flow low-profile INTARCON evaporating units are designed to cover a wide range of cooling needs in the most usual constructions. These series are fully equipped with thermostatic expansion and solenoid valves (optionally with electronic expansion valve), as well as aspiration siphon and switchboard electronic control. These units, featuring a new design and previously tested, can be customized with different fin spacing. These units are especially suitable for mall positive temperature cold rooms, handling and processing rooms and many other high temperature and medium temperature with laminar air flow applications, due to 3 different low-noise fan speed. Are available in configurations: JD series: Double flow evaporating units in a low-profile construction for high and medium temperature. There are 3 versions, according to the application: AJD-UF: Quasistatic evaporating unit performing a very low speed for minimum air flow demands, e.g. meat. Fin spacing of 6 mm for a cooling capacity range from 2,1 to 9,9 kW. AJD-NF: Double flow evaporating units low-speed, for working rooms where the air-flow intensitity is to be reduced at minimum level to guarantee workers health and comfort. Fin spacing of 4 mm for a cooling capacity range from 2,6 to 23,3 kW. AJD-AF: Double flow evaporating units high-speed with fin spacing of 4 mm for a cooling capacity range from 3,4 to 27,7 kW.
