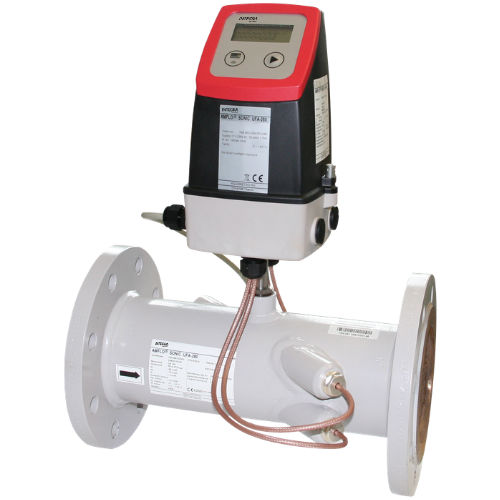

Ultrasonic transit-time flow meter AMFLO® SONIC UFA-280
volumefor liquidsDN25 - 1"

Ultrasonic transit-time flow meter - AMFLO® SONIC UFA-280 - INTEGRA Metering AG - volume / for liquids / DN25 - 1"
Ultrasonic transit-time flow meter - AMFLO® SONIC UFA-280 - INTEGRA Metering AG - volume / for liquids / DN25 - 1"
Ultrasonic transit-time flow meter - AMFLO® SONIC UFA-280 - INTEGRA Metering AG - volume / for liquids / DN25 - 1" - image - 2
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic transit-time
Type
volume
Fluid
for liquids
Pipe diameter
DN25 - 1", DN15 - 1/2", DN80 - 3", DN50 - 2", DN100 - 4", DN20 - 3/4", DN40 - 1"1/2, DN32 - 1"1/4, DN65 - 2"1/2, DN125 - 5", DN90 - 3"1/2, DN60 - 2"1/4
Installation
flange
Material
steel
Communication
digital output, Modbus
Protection level
IP67
Process temperature

Max.: 180 °C
(356 °F)

Min.: 5 °C
(41 °F)

Process pressure

16 bar, 25 bar
(232.06 psi, 362.59 psi)

Precision

0.5 %

Description

Ultrasonic flowmeter for district heating and building automation Products Application Flowmeters Products Medium Thermal energy Products Process Measure and transmit • Ultrasonic energy flow meter • Easy installation • No parameterization required • Maintenance free • Used for flow measurement in the following fields: district heating, cooling, building automation, cold & warm water • Large measuring range • High measuring accuracy +/- 0.5% v M • Not influenced by particles, chemicals or magnetite • Nominal diameter DN 50 – DN 1200 • Grey steel measuring tube • High measuring dynamics • Also supports MODBUS communication • Power supply by battery or 230 VAC mains • Protection class IP 67 • Measuring range 0.01 – 10 m/s • 2-way ultrasonic measuring system • Delivered with 5/10/20/30 m Coax cable (to be specified when ordering) • LCD display of current values and errors • Mounting position selectable
