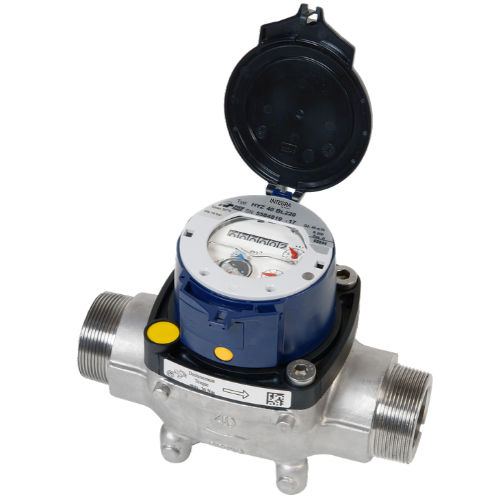

Ultrasonic flow meter RUBIN HYZ

volumefor watervertical

Woltman hydrant meter DN 40 Products Application Hydrant Irrigation Products Medium Water Products Process Measure and transmit • Simple and cost-effective exchange of measuring inserts • Counter head rotatable • No inlet and outlet sections required • Can be used as above and below ground hydrant meter • Robust stainless steel housing (corrosion resistant) • Integrated flow straightener (bidirectional measuring principle) • Robust water flow meter • Accurate meter measurements • Installation in horizontal and vertical pipelines, meter head orientation upwards or to the side • Nominal size DN 40 • Nominal pressure PN 16 bar • Temperature range 0°C to 50 °C • Protection class IP68 • SVGW Certification • Compatible with 2″ components (e.g. Storz coupling, System separator check valve) • Dimensions: 220 mm x 166 mm x 125 mm
