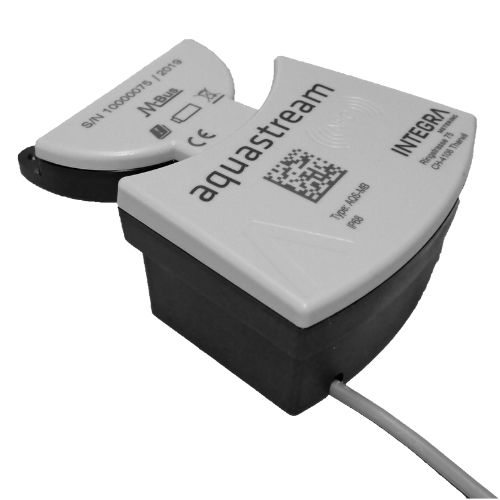

Serial communication module aquastream® M-Bus

M-Busremote

Communication M-Bus module system for water meters Products Application Communication devices Products Medium Systems & Software Water Products Process Readout / Transmission Remote reading of water meter information via a M-Bus network • Possibility to connect to electricity meters (smart metering system) • Easy programming with Android Smartphone • Long battery-powered lifetime: up to 16 years • Various data, events and alarms for analysing and monitoring • Easy installation on site or on existing premounted water meters: plug and play • Module for smart metering systems • Accurate meter measurements M-Bus compliant EN 13757-2/3 • Baudrate: 300, 2400, 9600 • Meter index: 00000,000 m3 / Configurable during installation • Resolution: 1 liter • For cold and hot water metering • Addresses: Primary 0-250 / secondary 8-digits / secondary extended with serial number • Information: telegram (REQ_UD2) • Current meter index / reverse water volume / current flow rate / maximum flow rate / date and time / module manufacturing number / factory number of the water meter / firmware version / hardware version / info status / battery life • Connection: Integrated cable with gel connector, 2 non-polarized wires • Power supply: Integrated 3.6V lithium battery • Protection Classe: IP 68 • Operating temperature: 0°C to +55°C • Storage temperature: -20°C to +70°C • Humidity rate: Up to 98% relative with condensation • Programming Interface: NFC • Alarms: Tampering/Wrong installation, Overload, Leakage, Low battery, reverse volume, Burst
