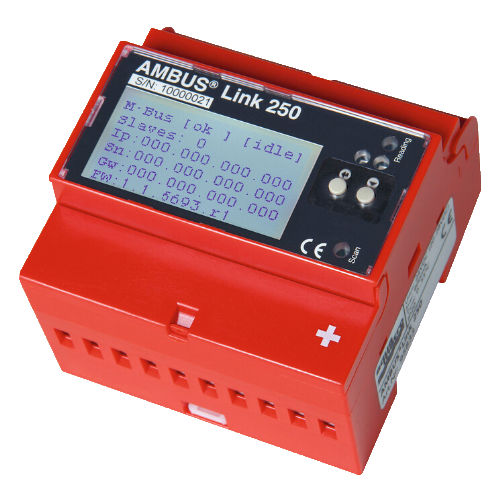

Air/water data center AMBUS® Link

Smart M-Bus data center for configuring, operating and monitoring M-Bus systems Products Application Building technology Communication devices Concentrators Products Medium Systems & Software Thermal energy Water Products Process Data processing / Evaluation • For new systems and for retrofitting existing systems • Integrated web server for remote control via network connection • Easy language selection • Facilitates the configuration, operation and monitoring of M-Bus systems as complete systems featuring modern, customer-friendly operation • Access to consumption data collected in multiple ways • Remote data reading via Internet standard browser • Configuration and analysis via mobile devices • Suitable for energy data management in accordance with ISO 50001 • Simple integration into BACnet/IP • Smart measuring system • Power Supply: 24 VDC • Power consumption: max. 1A • Temperature range: 0°C to 55°C • Display: Backlit LCD display (128×64 dots) • Installation 35mm DIN rail • Housing Polycarbonate, recyclable, non-combustible • Evaluation Web server / chart • Data export: As JSON or CSV file • Data memory: Micro SD card (must have at least 32 GB of free memory) • Firmware update: Yes, possible • Configuration: Local and remote configuration using a web browser • Inputs: 3x M-Bus; 2x Temperature PT1000 (-20°C to +100°C); 4x S0 • Outputs: 2x Relays • Interfaces: 1x Ethernet 10/100 Base RJ45; 1x USB type A; 1x USB type B • Baud rates: 300, 600, 1200, 2400, 4800, 9600
