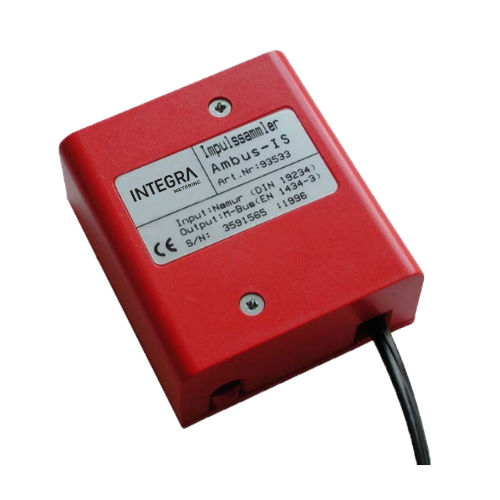

Analog data collector AMBUS® IS

temperaturecurrent

Products Application Concentrators Products Medium Systems & Software Thermal energy Water Products Process Readout / Transmission • Transfer pulse collections or message signals from a meter to a M-Bus system • Connection of pulse emitting meters to M-Bus systems • Signal acquisition with M-Bus systems • Maintenance-free, because without batteries • Simple commissioning • Power supply via M-Bus • Supply voltage: 12VAC to 18VAC, 50/60Hz or 12VDC to 24VDC • Current consumption: <20mA • Pulse input: for contact, open collector and Namur pulse generator according to DIN 19234, galvanically connected to power supply Mark: 2.2 mA / short-circuit current approx. 8 mA • Input frequency: 0Hz to 1000Hz • Pulse duration: >0.5 ms, debounce filter deactivated; >25 ms, debounce filter activated • Pulses cable length: max. 30 m • Terminal capacity: 0.14 – 2.5 mm2 rigid or flexible • Cable diameter: max. 7.5 mm • Communication interface: M-Bus according to EN 1434.3, galvanically isolated • Communication speed: 300 baud, 2400 baud (standard), 9600 baud • Mounting: wall mounting with 2 screws Ø 3.5 x 30 mm or adhesive tape • Housing: ASA-PC, red (UL V0) • Ambient temperature: 5°C to 55°C • Protection class: IP40 • Dimensions: 67mm x 60mm x 28mm
