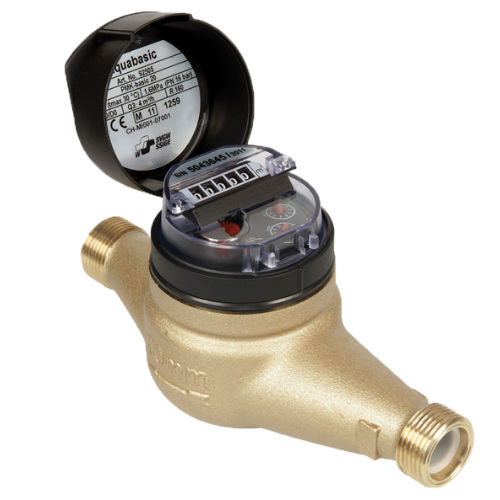

Analog water meter aquabasic® series

multi-jet vane wheel

• Multi-jet cold water meter • Cost-effective and fast retrofitting with radio or wired communication interface possible • Higher flexibility and easier planning through intelligent and modular system technology • Simple and user-friendly technology • No inlet and outlet sections required • Long service life and long-term measurement stability • Robust brass housing and thread • For horizontal installation • Nominal diameter: DN 15 – 50 • Nominal pressure: PN 16 • Temperature range: 0.1°C to 40°C • Protection class: IP 66 and IP 68 • Measuring range R160 • Accuracy class 2 (OIML R49) • Multi-jet impeller meter in dry-rotor version • 360° rotatable measuring unit • MID approval • Drinking water approval SVGW
