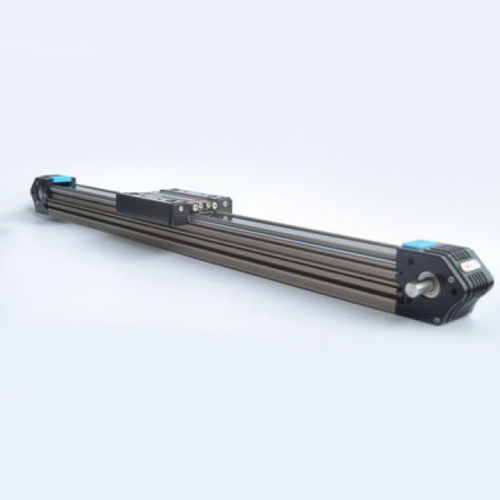

Belt-driven linear axis BEMA45stepper motor-drivenaluminumservo-driven
Add to favorites
Compare this product
Characteristics
- Type
- belt-driven
- Operation
- stepper motor-driven
- Other characteristics
- aluminum, servo-driven
- Stroke
Min.: 500 mm
(19.685 in)Max.: 3,000 mm
(118.11 in)- Speed
2 m/s
(6.56 ft/s)- Force
Min.: 80 N
Max.: 200 N
Description
BEMA Series motorized belt drive linear actuators operate at speeds up to 2 m/sec and do not require lubrication or maintenance under normal operating conditions. These actuators are ideally suited for high speed automation with positioning repeatability of +/- 0.1 mm. They feature polyurethane belt that helps to deliver repeatable positioning by avoiding belt stretching. Extruded aluminum housing design provides long travel, smooth motion and excellent repeatability. BEMA Series linear actuators are available with motor mounts for NEMA and Metric sized stepper and brushless servo motors for optimal dynamics.
Stroke
mm
500 - 3,000
Belt pitch
mm/mtr rev
75
Motor mounts size
Nema 17, 23
Motor type
Stepper
Servo/encoder
Repeatability
micron
± 50...100
Speed
m/sec
2
