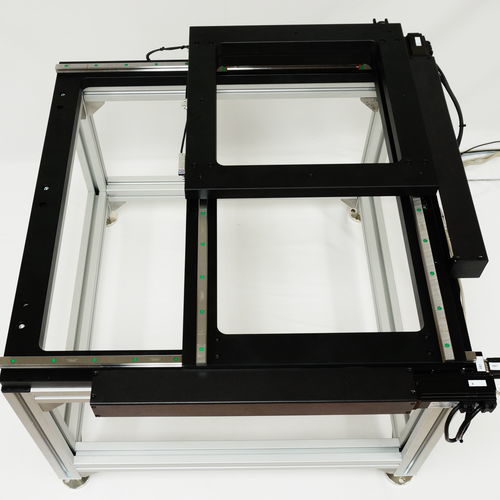

Large aperture positioning system F-S300x300-A300x300J2-axismulti-axisportal
Add to favorites
Compare this product
Characteristics
- Number of axes
- multi-axis, 2-axis
- Features
- linear, horizontal, portal, optical
- Applications
- for wafer inspection and metrology, for robots, multi-function, for laboratory applications, for the semiconductor industry, for clean rooms, for wafer handling, for the pharmaceutical industry, for scanners, for testing
- Other characteristics
- with DC motor, compact, ball screw, high-accuracy, linear motor-driven, high-resolution, precision, servo controlled, with stepper motor, USB, plug-and-play, large aperture, with controller
- Repeatability
1 µm
- Load
30 kg
(66.14 lb)- Stroke
Min.: 100 mm
(3.94 in)Max.: 600 mm
(23.62 in)300 mm
(11.81 in)- Speed
Min.: 10 mm/s
Max.: 200 mm/s
100,000 mm/s
(328.08 ft/s)
Description
Open-frame XY stages designed with a low profile for a wide range of automated accurate positioning in microscope-based applications. The drive mechanism located on the side of the unit and offers a clear un-obstructed two axes aperture to enable light or objects to pass through the center of travel.
Travel 300x300 mm to $ 600x600 mm
