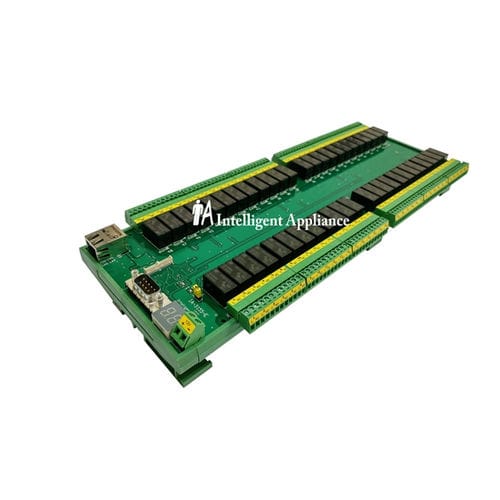

Programmable relay module IA-3155-E

DIN rail mounted

The IA-3155-E is an Industrial Grade TCP/IP SPDT Relay Controller, CE and FCC approved, ROHS compliant, most reliable module designed to operate on factory floor in harsh noisy EMI/RFI Environment. Its TCP/IP Ethernet port includes an onboard server and may be operated in DHCP mode or in a Static IP mode. The port configuration may be done by the built-in web page, by AT commands or by a software configuration utility. The IA-3155-E includes 48 SPDT Relays with a contact rating of 2Amp at 30VDC. MS Studio DOT.net Library, Open source code examples and immediate operation utilities enables fast system integration. The IA-3155-E Relay Controller ‘s Ethernet port, enables using it as a Web Controlled Relay board, Factory Floor, Building Control and Automatic Testing relay controller. The WD2, system watchdog, improves its system operations performance, enabling setting of relays state at communication failure occurrence, avoiding fatal factory floor damage in case of communication or host crisis.
