Digital relay module IA-3152-E
DIN rail mounted

digital relay module
digital relay module
Add to favorites
Compare this product


Characteristics

Type
digital
Mounting
DIN rail mounted
Load current

5 A

Load voltage

30 V, 250 V

Description

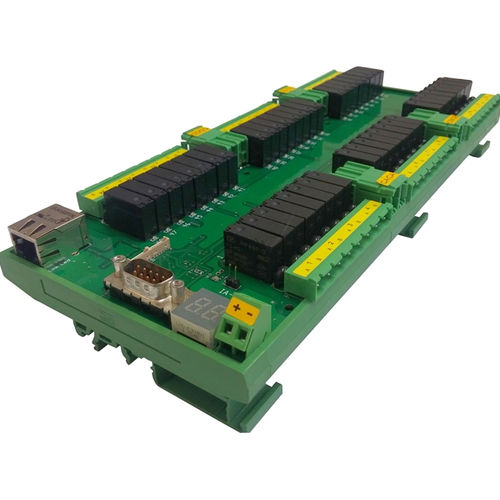

The IA-3152-E is an Industrial Grade TCP/IP Relay Controller, CE and FCC approved, ROHS compliant, most reliable module designed to operate on factory floor in harsh noisy EMI/RFI Environment. Its TCP/IP Ethernet port includes an onboard server and may be operated in DHCP mode or in a Static IP mode. The port configuration may be done by the built-in web page, by AT commands or by a software configuration utility. The IA-3152-E includes 48 Relays with a contact rating of 5Amp both at 30VDC and 250VAC. Each relay’s contacts are protected by Voltage Suppressor device, keeping low RFI/EMI Noise and long operation life. The relays are provided in 8 Groups, 4 Relays and 8 Relays on each Group, enabling a total control of up to 7.2KW or up to 60KVA. MS Studio DOT.net Library, Open source code examples and immediate operation utilities enables fast system integration. The IA-3152-E Relay Controller most capable Ethernet port makes it a Web Controlled Relay board that can fit Factory Floor, Home Control and many other tasks.
