Inductive proximity sensor RX series

ringplastic

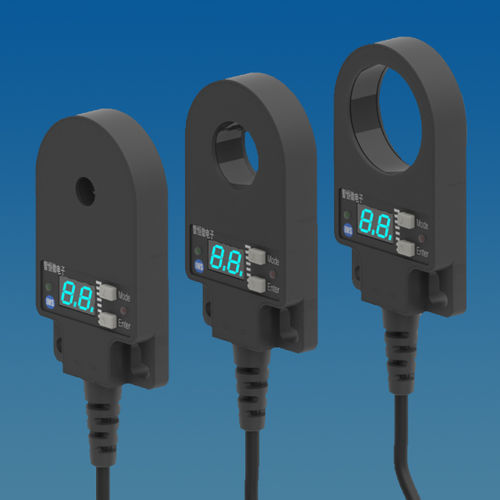

Inductive ring sensor senses the change of inductance when metallic objects pass through the ring. IMS sensors have four kinds of sizes to meet different applications. They are especially designed for detecting small metallic objects, such as wire, nuts, screws, washers etc passing through the ring (dynamic mode). It can be also used to detect the fracture of continuous metal wire inside the ring(static mode). Features: • High performance inductive sensor ASIC • Adjustable sensitivity with LED display • Adjustable on delay, off delay, one shot time • Build in 100ms Power On Delay eliminate false trigger when power up • Self-Recover Short Circuit protection on NPN/PNP output, Reverse Polarity and Over Voltage Protection on sensor power supply • Self-Recover Short Circuit, Reverse Polarity, Over Voltage Protection • Various ring diameter of 5mm, 10mm, 18mm and 30mm for different sensitivity requirement • Settable dynamic mode and statics mode
