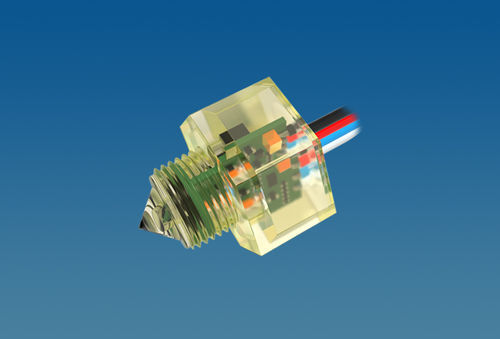

Optical level sensor DTM12-IHS-5V-C

for liquidsanalogeconomical

Optical liquid level switches use the light reflection principle in the prism to detect whether there is liquid at the installation position of the sensor. These optical level sensors are compact, cost-effective and ideal for various fluids. Product Features: • Thread: M12 • High Performance ASIC based compact sensor • Build in 100ms Power On Delay eliminate false trigger when power up • Self-Recover Short Circuit protection on NPN/PNP output, Reverse Polarity and Over Voltage Protection on sensor power supply • Self-Recover Short Circuit, Reverse Polarity, Over Voltage Protection • Detection accuracy: ±1mm • Low Power: 10mA with output low • Temperature range: -20~55℃ or - 40°C~100°C • Highly chemical resistance material: Polysulfone or Trogamid • Water Proof IP67 • Thread type: M12
