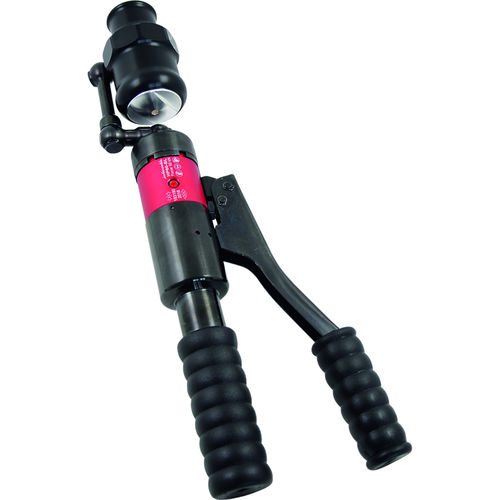

Hydraulic punching tool HP60-BL

manual

Suitable for punching round, square, and rectangular holes through materials up to a max. thickness of 3 mm Technical characteristics: Light, compact, and rugged construction Head can be pivoted/rotated by 360° Hydraulic head made of high-strength aluminium Fast feed due to double-piston hydraulics Automatic pressure limiter Manual return possible in any position by turning the handle Application temperature range: -10°C / +40°C. Punching force: 60 kN Operating pressure: 700 bar Punching capacity (max. sheet thicknesses): Up to Ø 63.5 mm: 3.0 mm steel / 2.5 mm stainless steel Up to Ø 68.0 x 68.0 mm: 3.0 mm steel / 1.5 mm stainless steel Up to Ø 92.0 x 92.0 mm: 2.5 mm steel / 1.5 mm stainless steel Larger than 92.0 x 92.0 mm, up to 138.0 x 138.0 mm 2 mm steel
