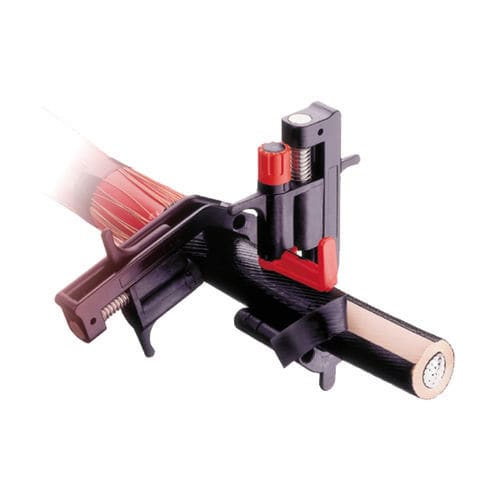

Cutting wire stripper HLS

for cablesinsulated

Application range: Ø 16 - 41 mm Insulation thickness: 0 - 2 mm Suggested application: Non vulcanized, peelable semiconductive layer To strip the non-vulcanized semiconductive layer of MV cables Longitudinal, helical and circular cuts Positioned on the cable comparable to a vice system Stop clamp to limit the stripping length Gradually depth adjustment Maximal rotating diameter 130 mm The positioning of the stripper and holding of stops-clamp is assured by the pressure of the spring The incision depth can be adjusted from 0 to 0,9 mm with 0,1 mm steps each by turning the corresponding knob The start of longitudinal incision can be done in exact correspondence with the circumferential incision.
