Hydraulic pipe TU.05.20.06.316
pneumaticfor aggressive productsfor corrosive fluids

hydraulic pipe
hydraulic pipe
Add to favorites
Compare this product


Characteristics

Use
hydraulic, pneumatic, for aggressive products, for corrosive fluids, for hydrogen
Material
stainless steel
Applications
for high pressure
Other characteristics
corrosion-resistant
Outer diameter

0.375 in

Pressure

20,000 bar
(290,075.475 psi)

Temperature

Max.: 649 °C
(1,200.2 °F)

Min.: -252 °C
(-421.6 °F)

Description

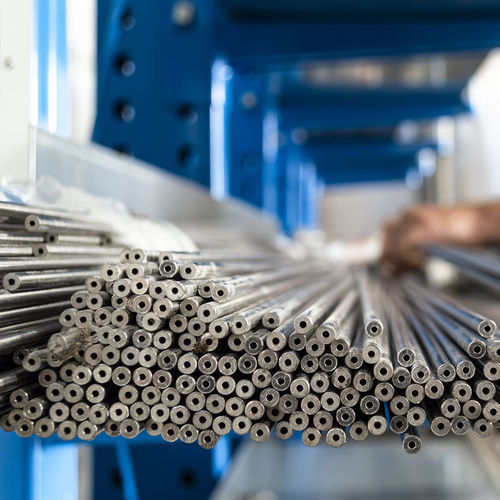

Tubing Size: 3/8" is used in a various range of applications, not only for high pressure but also for aggressive (corrosive) medium. Main applications are waterjet cutting, production lines, hydraulic and pneumatic testing. The tubing is suitable for liquids and gases. Standard materials are 316L and 304L (6 metres). Exotic materials are available upon request. Tubing is provided in random lengths of 5-7 metres (16,4-23 ft), it can be supplied to customer length as required and it can also be coiled (only ¼”).
