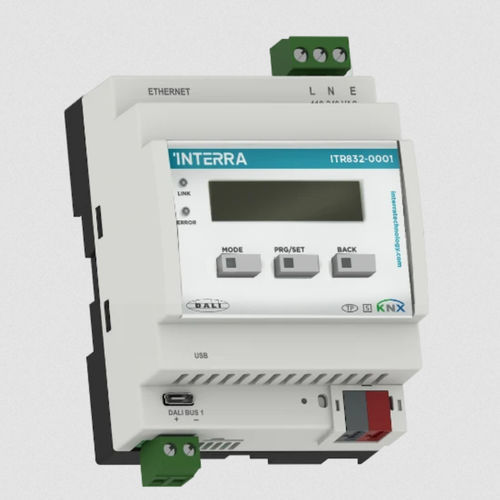

Communication gateway ITR832 series

EthernetUSBDIN rail

The ITR832-001 & ITR832-002 single and dual channel KNX-DALI interface devices are used to provide interface between DALI and KNX installations, enabling communication between the two proto-cols. DALI devices (ballasts, etc. ECGs) connected to the line are supplied with the internal DALI power supply. With the ITR832-001 single-channel device up to 1x64 DALI ballasts can be connected, with the ITR832-002 dual-channel device up to 2x64 DALI ballasts can be connected. With each DALI channel, 16 groups, 16 scenarios and 64 devices can be controlled. In addition, independent emergen-cy lighting according to EN 62386-202 will be supported with the 2nd version update. Emergency lighting tests (eg function and time test) can be triggered via the KNX line. In addition, feedback on the KNX line can be sent. Each DALI device can be controlled by individually, group or broadcast control. • Automatic DALI Device Addressing. • KNX Bus Voltage Failure Status. • KNX Voltage Recovery Status. • DALI Bus Voltage Failure Status. • DALI Voltage Recovery Status. • Ballast and / or Lighting Error. • Working log analysis with UDP. • Broadcast control can be made with manually and software. • Tunable White colour temperature control. • RGB and RGBW colour control. • Presence Sensor can be connected on DALI line (*). • Pushbutton switch can be connected on DALI line (*). • Daylight Sensor can be connected on DALI line (*). * : Features will be added in second version of the device.
