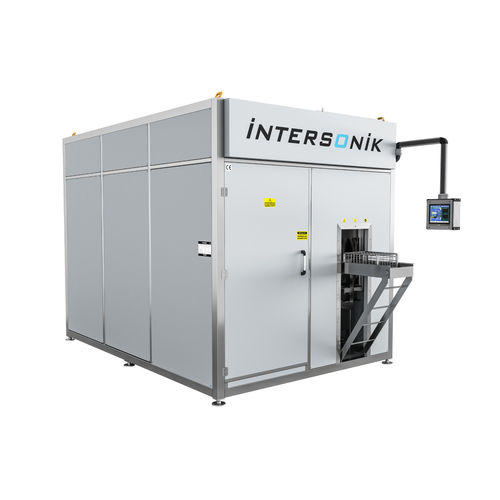

Solvent washing machine SOLWASH

sprayultrasonicimmersion

CLOSED SYSTEM HERMETIC SOLVENT (MODIFIED ALCOHOL-TRICHLOROETHYLENE -PERCHLOROETHYLENE) -CHLORINATED SOLVENTS-ACETONE-ALCOHOL PRECISION PARTS -CAST - BRONZE -BRASS- METAL MACHINING , AUTOMOTIVE SPECIAL PRODUCTS WHICH IS NOT CLEANED WITH AQUEOUS SYSTEMS ,PRINTING MACHINE COMPONENTS PRINCIPLE OF OPERATION PARTS WILL BE LOADED IN TO THE BASKETS AND FED INTO THE ROTATING CAGE INSIDE THE WASH CABIN. A SET PROGRAM IS CHOSEN FROM THE PLC MENU THEN WASHING-ULTRASONIC AND VAPOR RINSING FOLLOWED BY VACUM DRYING IS PERFORMED.IN THE MEANWHILE AS THE SYSTEM IS A CLOSED LOOP MACHINE THE SOLVENT INSIDE THE MACHINE WILL CONTINUOUSLY BE REGENERATED AND PRACTICALL NO LOSS OR VERY LITTLE SOLVENT LOSS IS EXPECTED. The parts are loaded in to the basket sitting in front of the machine roller conveyor. The basket is transferred manually or automatically inside the washing chamber. The process is started by selecting the required program from the PLC menu. Basic process flow: Spray washing - Ultrasonic washing - flushing – drying Modified alcohols, Trichlorethylene, Perchlorethylene. The solvent is automatically regenerated and recycled during running the machine. Cabin-type solvent-based parts washer. 100% closed loop. Solvent type washer.
