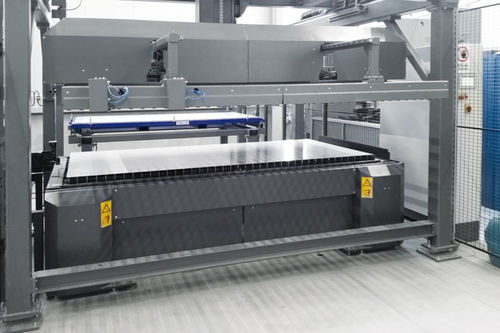

Warehouse automated storage and retrieval system PickMat-3015

for storage systems

Where do we start? With the vacuum unit to receive the raw material? Or with the screening system with whose help the raw material is placed on the shuttle table of the laser and picked up again with the cut plates to then be placed on the Double-Material Trolley (D-MTT)? That a material thickness of up to 25 mm is possible? It is convincing that an interaction by the warehouse is not absolutely necessary with the Double-Material Trolley. Use the PickMat-3015 as stand-alone solution or otherwise with link to the warehouse. In this case you can link several laser systems or D-MTTs. You can process metal plate formats of 3 x 1,5 m, 2,5 x 1,25 m and 2 x 1 m. Residual material storage and provision is a major subject for us. Screening system The support bars or the optional belt system take care of a low-scratch handling which is gentle on the material. D-MTT With two trolleys: the upper is for cut metal plate. The lower for raw material. This means that a fast change can be guaranteed. An interaction with the warehouse is therefore not absolutely necessary. Vacuum unit Consists of 20 suction plates and six independent pneumatic circuits. In the case of non-occupancy, it switches off automatically. Including double plate control. The wave function allows a process-reliable separation for thin metal sheets.
