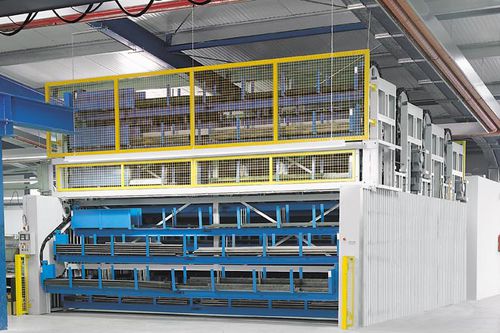

Vertical storage carousel InterMat IM-BV1.1

for long items

In addition to bridge units (where the chain path and carriers leave the floor and traverse horizontally to capture unused space above), multiple loop systems are common and share the Part-to-Person benefit. In all cases, the design starts with the carrier, then the ideal chain path is configured. 100 % selectivity with part picking / re-stock at the safe, ergonomic golden zone. Capacity: 42 carriers Live load per carrier: 2,000 kg (4,409 lb) Carrier dimensions: L 6.50 m (21 ft 4 in), H 0.42 m (16.5 in), D 0.42 m (16.5 in) Carousel dimensions: L 7.70 m (25 ft 4 in), H 4.70 m (15 ft 5 in), D 8.40 m (27 ft 7 in) Capacity: 44 carriers Live load per carrier: 500 kg (1,102 lb) Carrier dimensions: L 4.20 m (13 ft 10 in), H 0.50 m (19.7 in), D 0.63 m (24.8 in) Carousel dimensions: L 5.40 m (17 ft 8 in), H 7.00 m (23 ft), D 19.50 m (64 ft) (bridge)/D 4.50 (14 ft 10 in) (floor) Customized carriers, chain paths, loading options are normal Stored goods are often extremely long and very heavy – and not all systems can come to terms with this. Not so our vertical carousels. Depending on the requirements and capacity, they are perfect for pit and cellar installation or for horizontal and vertical use of the room – perfect flexibility. Capacity: 34 carriers Total live load: 17,000 kg (37,479 lb) Carousel dimensions: L 14.48 m (47 ft 6 in), H 6.50 m (21 ft 4 in), D 6.70 m (22 ft) Carrier dimensions: L 13.20 m (43 ft 4 in), H 0.40 m (15.8 in), D 0.50 m (19.7 in) Machine type: IM-VO-3.2 Controller: INT-MP pre-selector control Capacity: 20 carriers Total live load: 40,000 kg (88,185 lb) Carousel dimensions: L 13.50 m (44 ft 4 in), H 6.50 m (21 ft 4 in), D 16.50 m (54 ft 1 in)
