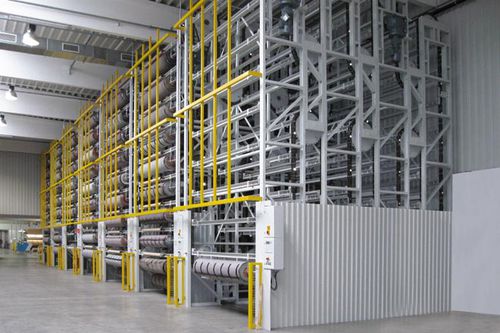

Vertical storage carousel InterMat IM-VO4.1

for cylinders

Flexibility – universally promised, but uniquely proven by Intertex – every day. Using every cubic foot of space available, then finding more via a pit or cellar – Intertex creatively finds the space you need, but retains the selectivity you demand. Our InterMat Vertical Carousels store tens of millions of Dollars / Euros of print cylinders and present safe, efficient delivery to operators every day – around the world. Capacity: 78 carriers Total live load: 50,700 kg (111,774 lb) Carousel dimensions: L 4.50 m (14 ft 10 in), H 8.00 m (26 ft 4 in), D 5.60 m (18 ft 5 in) Carrier dimensions: L 3.25 m (128 in) Machine type: IM-VO4.1 Controller: INT-MP 1 pre-selector control Capacity: 78 carriers Total live load: 57,600 kg (126,986 lb) Carousel dimensions: L 4.50 m (14 ft 10 in), H 8.00 m (26 ft 4 in), D 5.60 m (18 ft 5 in) Carrier dimensions: L 3.50 m (11 ft 6 in) Machine type: IM-VBO4.1 Controller: INT-MP 1 pre-selector control Capacity: 10 carriers Total live load: 6,000 kg (13,228 lb) Carousel dimensions: L 5.70 m (18 ft 8 in), H 5.70 m (18 ft 8 in), D 4.20 m (13 ft 10 in) Carrier dimensions: L 4.5 m (14 ft 10 in) Machine type: IM-VO1.1 Controller: Siemens S7 pre-selector control
