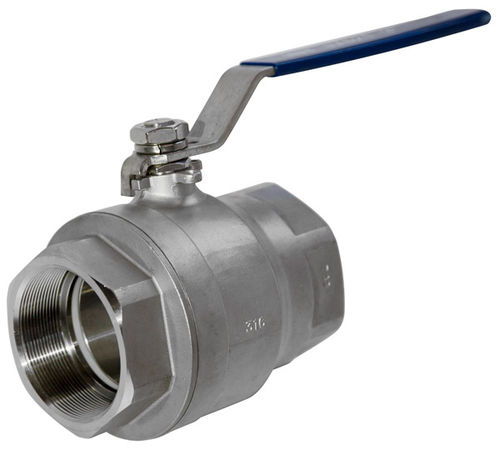

Ball valve leverfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for water
- Body
- threaded, 2-piece, stainless steel
- Other characteristics
- full-flow
- DN
Min.: 0.25 in
Max.: 3 in
- Pressure
Min.: 0 bar
(0 psi)Max.: 63 bar
(913.7 psi)- Temperature
Min.: -25 °C
(-13 °F)Max.: 180 °C
(356 °F)
Description
TECHNICAL INFORMATION1. Stainless steel full port ball valve, 2 pieces2. Thread ends according gas EN 10226-1 (EX ISO 7-1 e DIN 2999)3. Made of AISI 316 (CF8M)4. Ball seats PTFE + 15% G.F.5. Blow-out proof stem6. Viton o’ring stem7. Stem gasket PTFE8. Locking system9. Max.. Working pressure 63 bar10. Working temperature -25 °C + 180 °C
Catalogs
No catalogs are available for this product.
See all of Intertubi‘s catalogs
