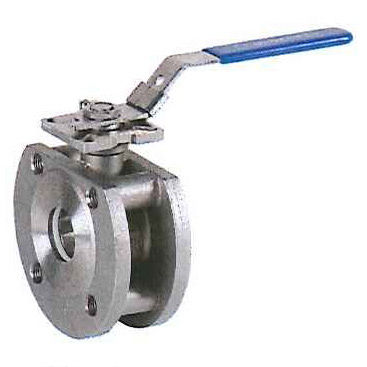

Ball valve leverfor waterflange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for water
- Body
- flange, wafer, stainless steel
- DN
Max.: 4 in
Min.: 0.5 in
- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
TECHNICAL INFORMATION1. Full port ball valve, Wafer type2. Assembly with flanges DIN PN-163. Made of Stainless Steel AISI 3164. Ball seats PTFE + 15% G.F.5. Blow - out proof stem6. Direct mounting actuator according ISO 5211 (from 1”)7. Block System included8. Max. Working pressure 16 bar9. Working Temperature -20°C + 180°C
