Ceramic capacitor KCA eries
SMDmultilayerfor DC

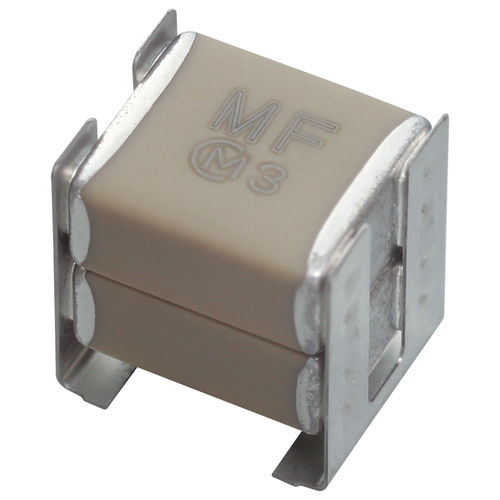

Ceramic capacitor - KCA eries - IPDiA - SMD / multilayer / for DC
Ceramic capacitor - KCA eries - IPDiA - SMD / multilayer / for DC
Ceramic capacitor - KCA eries - IPDiA - SMD / multilayer / for DC - image - 2
Add to favorites
Compare this product


Characteristics

Type
ceramic
Configuration
SMD
Technical characteristics
multilayer, for DC
Applications
for automobiles
Capacitance

Max.: 0.01 µF

Min.: 0 µF

Voltage

250 V

Description

Safety Standard Certified Metal Terminal Type Multilayer Ceramic Capacitors for Automotive(Powertrain/Safety) For Automotive IEC60384-14 X1/Y2 Class Certified Product (Basic insulation product) Features 1. IEC60384-14 certified product:Rated voltage 250Vac(r.m.s.). Please down load Safety Standard Certification (Type MF: X1,Y2) from here. 2. Best suitable for class Y2 capacitors. 250Vac(r.m.s.)-rated voltage, withstand voltage of 2000Vac(r.m.s.) guaranteed for 60 seconds. 3. Best suitable for DC input common mode noise filters. 1000Vdc-rated voltage, withstand voltage of 3000Vdc guaranteed for 60 seconds 4. Bond metal terminals to the external electrodes of chips. The stress applied to the chip is relieved by the elastic action of the metal terminal. 5. Substantially reduces board deflection cracks and soldering cracks. This product is not damaged even with a board deflection of 6 mm. Solder cracks do not occur even with 2,000 cycles of heat stress. 6. 2 chips can be stacked. Realize large capacity by stacking 2 capacitors.
