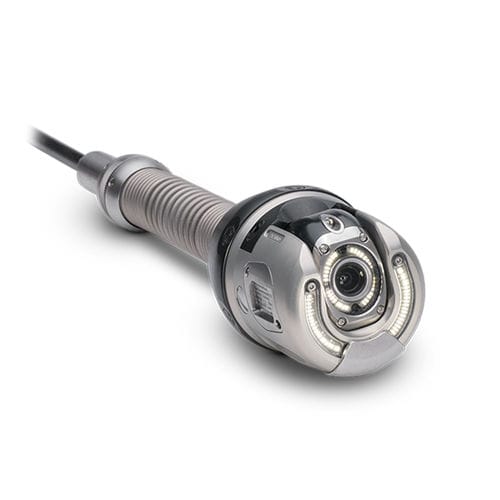

Spark optical emission camera module PTP70II
CMOSpan-tilt-zoom

Spark optical emission camera module - PTP70II - iPEK International GmbH  - CMOS / pan-tilt-zoom
Spark optical emission camera module - PTP70II - iPEK International GmbH  - CMOS / pan-tilt-zoom
Add to favorites
Compare this product


Characteristics

Function
spark optical emission
Sensor
CMOS
Other characteristics
pan-tilt-zoom

Description

The pan & tilt head camera PTP70II features endless rotation and a panning range of -20° up to +110°. The pan & tilt camera PTP70II is connected to a crawler with the crawler adapter RCC70 or to the AGILIOS pan & tilt push camera system by means of the spring connection SP70. CMOS color camera Rotation and pan unit integrated in the camera head Endless rotation range Powerful homogeneous illumination through LED lighting Light control from 0 - 100% Impact-resistant lighting ring with integrated, ex- changeable bumper Upright picture Integrated laser to determine diameters and crack widths Location transmitter can be activated High sensitivity to light High resolution Indication of the panning and rotation angle on the GUI of the VC200/ DCX5000 and in the text generator (VC200) Internal pressure display via system status VC200 / DCX5000 With spring connection SP70 compatible to the AGILIOS pan & tilt push camera system With crawler adapter RCC70 compatible to the ROVION inspection system Interruption-free panning of pipe connections
